LumaSense Technologies Pyrometer
0-200°C
IN5-DC-H
1 Technical data
Measuring range: 0 ... 200°C
Optics: Si lens (see chart)
IR Detector: Thermopile
Spectral response: 8 ... 14 µm (no influence by water vapour or CO2)
Output signal: 0 ... 20 mA load independent DC, linear, galvanically isolated
Internal processing of measured data : digital
Max load: 500 Ohm??
Emissivity: 0.92; fixed
Response time (t90)*: 9 ms; fixed
Accuracy**: (e = 1, t90 = 1s, Tamb.=constant) Ta: 15 ... 30°C: 1 °C
Ta: 0 ... 15 / 30 ... 45°C: 1.5 °C
Ta: 45 ... 70°C: 2 °C
Repeatability**: (e = 1, t90 = 1s, Tamb.=constant) 0.5°C
Noise Equivalent Temperature Difference (NETD): (e = 1, ??= 1, Tamb.=23°C) 0.1 °C measured temperature = 23°C
Safety system: IP65 (with mounted connector)
Operating temperature: 0 ... 70°C
Storage temperature: -20 ... 70°C
Power supply: 10 ... 30 V DC ripple must be less then < 0.5 V, 50 mA max.
Housing: Stainless steel
Dimensions: 92 mm x 49.5 mm (LxD)
Weight: 350 g
Mounting position: any
CE-Label complies with EC rules about electric immunity
Order no.: 3 869 910
Connection cable: A connecting cable is not included with the instrument and should be ordered separately (see.6, Accessories). * according IEC/TS 62492-1 Edition 1.0 2008-04 ** The instrument must be at a constant ambient temperature for a minimum of 15 minutes

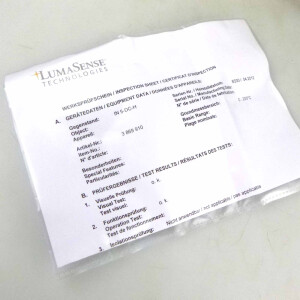

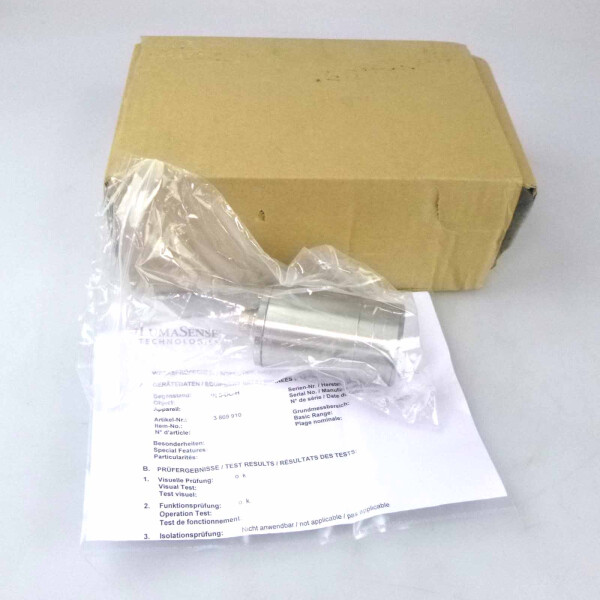

Bei diesem Angebot handelt es sich um eine augenscheinlich unbenutzte Baugruppe aus einem Ersatzteillager, Alter unbekannt, nicht getestet.(Beispielfoto)
